You are here: home  > Hydraulic ball valves  > 2 Way Ball Valves

2 Way Ball Valves

Payment Terms: T/T,WU
Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: KHB/KHM
Production Capacity: 3000pcs/monthly
Delivery Date: 15 days
Standard or Nonstandard: Standard
Structure: Ball
Temperature of Media: Medium Temperature
Brand Name: QITE or OEM
Means of Transport: Air
Packing: carton
Power: Hydraulic
Pressure: High Pressure
Material: Brass
Media: Oil

KHB/KHM Series High Pressure Ball Valves

Specification:

1. Series Code: KHB(BKH), KHM(MKH)
2. Joint Code: M**, G**, **LR, **SR, PT**, NPT**
3. Valve Body Material: 1-steel
4. Ball Body Material: 1-steel, 2-brass
5. Operating Temperature: -25~+100oC, -30~+170oC
6. Other Airproof: 2-NBR, 4-FPM
7. Handle Type: 01-aluminium straight, 02-aluminium crooked handle, 03-casting zinc straight handle, 04-casting zinc crooked handle, 05-steel straight handle, 06-steel crooked handle, 07-without handle
8. Design Number: to be decided by the manufacturer
9. Surface Disposal: blank-phosphoric polish, G-electroplated yellow zinc




Symbol:

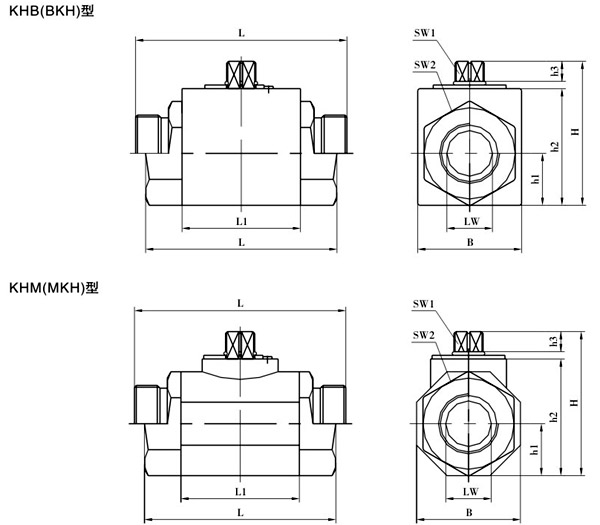

Overall Dimension:



overall dimension of  2 way ball valves for hydraulic fluid



Dimension Sheet:


PN(bar)DNModelPN(bar)DNModelPN(bar)DN
KHB-M16*1.550006KHB-NPT1/850004KHB-22LR31520
KHB-M22*1.550008KHB-NPT1/450006KHB-28LR31525
KHB-M27*1.550010KHB-NPT3/850010KHB-35LR31532
KHB-M30*1.540016KHB-NPT1/250013KHB-42LR31540
KHB-M36*231520KHB-NPT1/240016KHB-08SR50004
KHB-M42*231525KHB-NPT3/431520KHB-10SR50006
KHB-M52*231532KHB-NPT131525KHB-12SR50008
KHB-M60*231540KHB-NPT11/431532KHB-14SR50010
KHB-G1/850004KHB-NPT11/231540KHB-16SR50013
KHB-G1/450006KHB-NPT231550KHB-16SR40012
KHB-G3/850010KHB-06LR50004KHB-20SR50013
KHB-G1/250013KHB-08LR50006KHB-20SR40016
KHB-G1/240016KHB-10LR50008KHB-25SR31520
KHB-G3/431520KHB-12LR50010KHB-30SR31525
KHB-G131525KHB-15LR50013KHB-38SR31532
KHB-G11/431532KHB-15LR40012
KHB-G11/231540KHB-18LR50013
KHB-G231550KHB-18LR40016


We are China ball valves for hydraulic fluid manufacturer offer best ball valves for hydraulic fluid OEM, ODM,service
